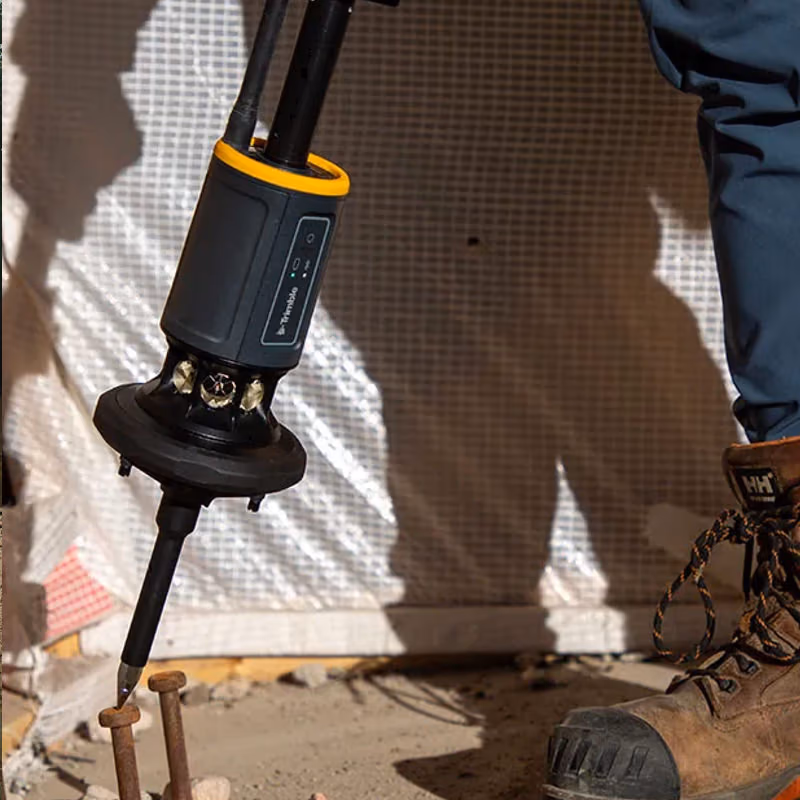

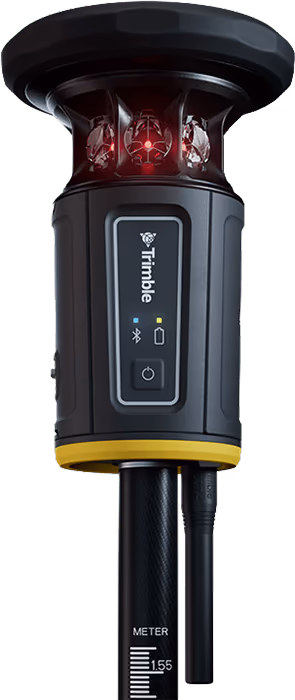

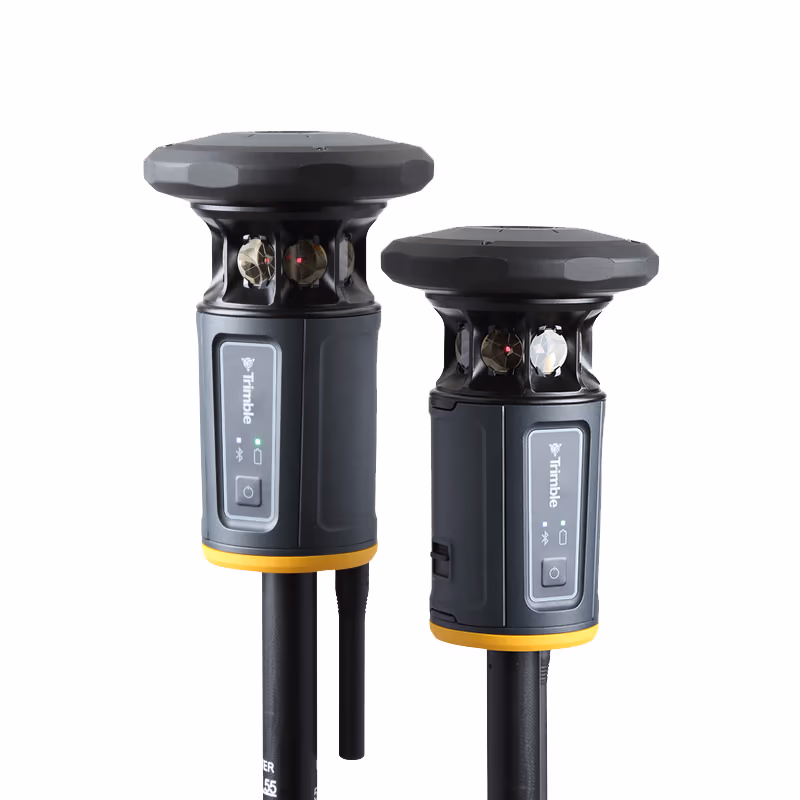

Trimble ST30 Smart Target

This is what smart looks like.

Measure and move faster with the Trimble® ST30 smart target. With technology designed to boost accuracy, minimize errors and maximize efficiencies, the ST30 revolutionizes your survey workflows to confidently turn challenges into success.

Enquire Now

Need a Quote?

We’ll Call You

Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.

Select a Country

Select Your Industry

Need a Quote?

We’ll Call You

Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.

Select a Country

Select Your Industry

Built for Precision

Precision engineered to adapt to every measurement you take

The Trimble ST30 is a smart target built to handle optical and GNSS workflows in one compact unit. Powered by the Trimble ProPoint engine and Trimble TIP tilt compensation, it lets your crew measure accurately in almost any position, on almost any site, without switching gear between tasks.

Datasheet

Brochure

DS_TrimbleST30 Smart Target Download

BRO_TrimbleST30 Smart Target Download

Benefits & Performance

Work smarter and boost productivity on every job you take on

Elevate your operations with the versatile ST30, featuring proven Trimble technologies and innovations that empower you to work smarter and boost productivity on every job.

Enquire Now

Need a Quote?

We’ll Call You

Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.

Select a Country

Select Your Industry

Effortless versatility

Optimize field time by switching from optical to GNSS workflows with one compact target. Powered by the Trimble ProPoint® engine, it can handle any job in any condition.

Focus on the job, not the rod

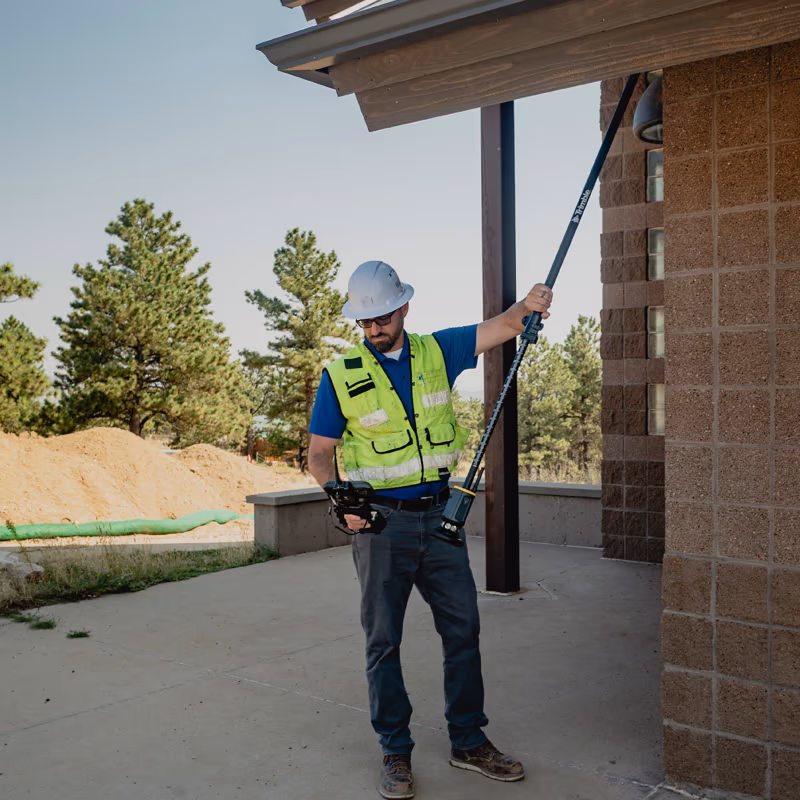

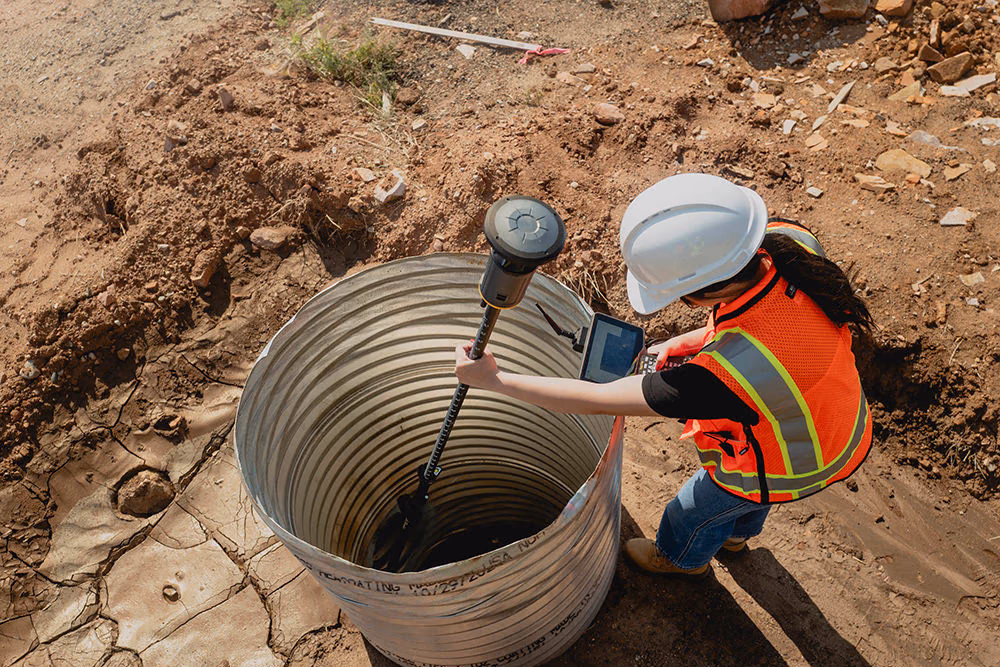

Trimble TIP^™ adds tilt compensation to optical and GNSS workflows. Measure accurately on the ground, above your head, right-side up or even upside down.

Key Specifications

Precision engineered to adapt to every measurement you take

The ST30 helps you complete work more quickly, without sacrificing accuracy, so you can enjoy uninterrupted productivity.

Key Specifications

Optical TIP performance: H: TS + 2.5 mm + 0.3 mm/° tilt, V: TS + 1 mm + 0.1 mm/° tilt
GNSS TIP performance: RTK + 3 mm + 0.3 mm/° tilt
Automatic rod height accuracy: ± 0.6 mm
Trimble active tracking range: 1.5 m – 600 m
Rod height: 1.55 m – 2.6 m

Features and Capabilities

Built-in capabilities for every stage of the job

From streamlined optical-to-GNSS switching to automatic rod height tracking, the ST30 brings together the tools your crew needs to stay locked on and productive, even on the busiest jobsites.

Survey Faster

Streamlined, simplified workflows

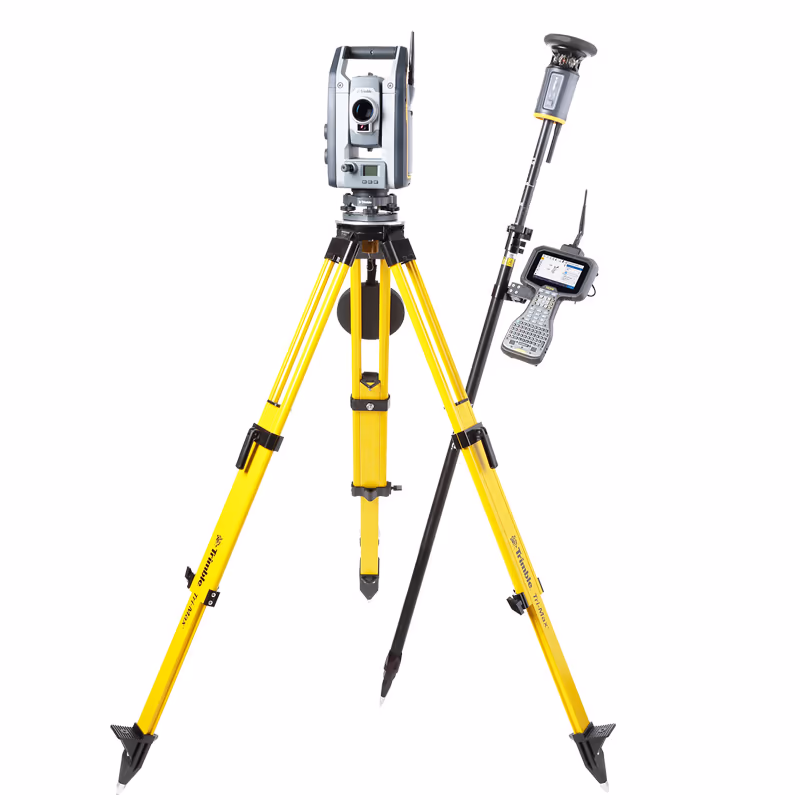

Adapt to any job with a versatile target that integrates optical and GNSS capabilities. Switch measurements without switching gear, and simplify grid-to-ground tasks.

Measure confidently

Correct rod height, always

Rod height is fully adjustable and automatically synchronized with Trimble Access™ field software, avoiding costly rod height errors and providing peace of mind.

Always locked on

No searching required

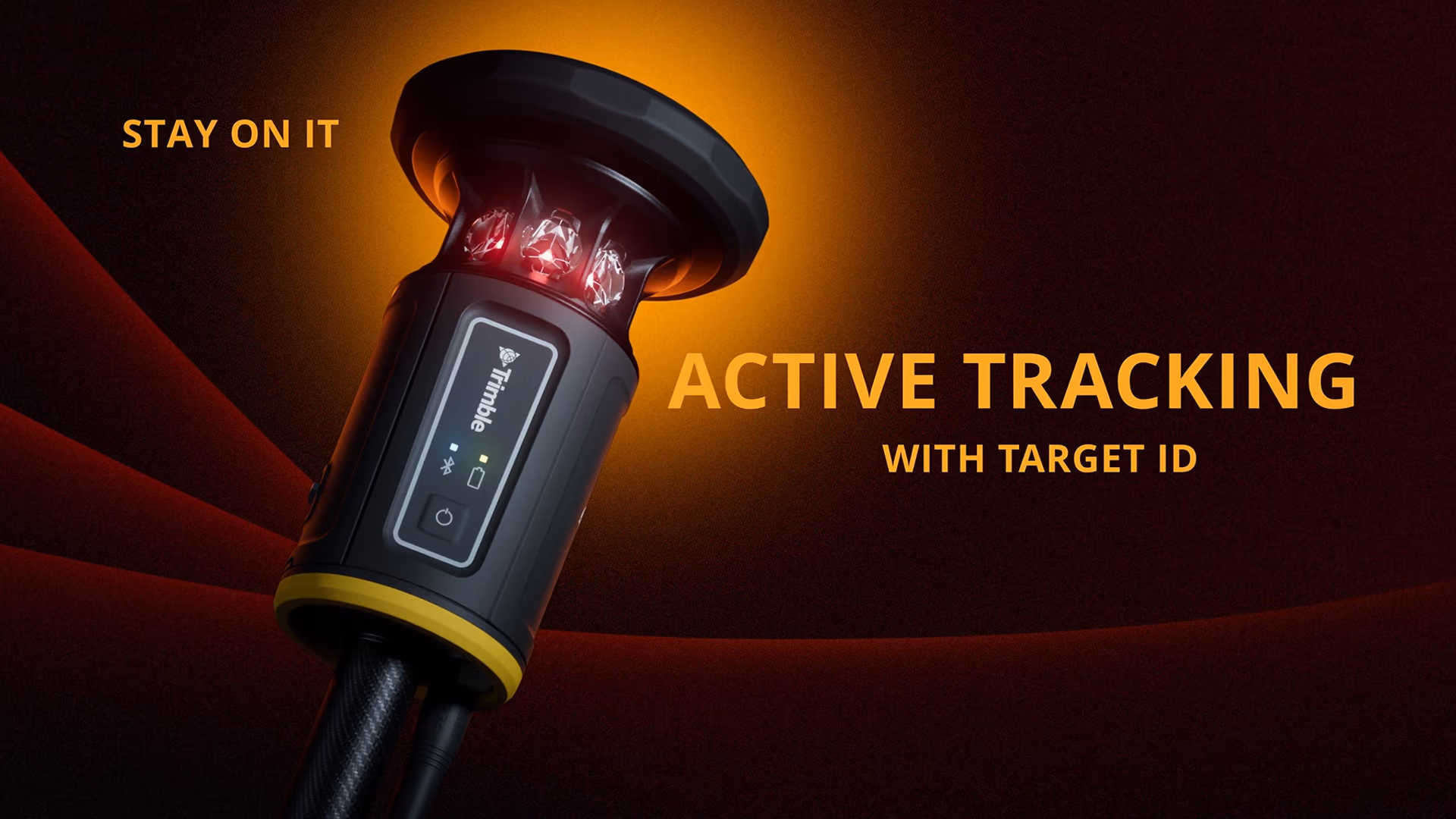

Integrated GNSS, Trimble RTX^® corrections, active tracking, target ID and Trimble Access GeoLock work together for seamless tracking, even on the busiest jobsites.

Measure with accuracy

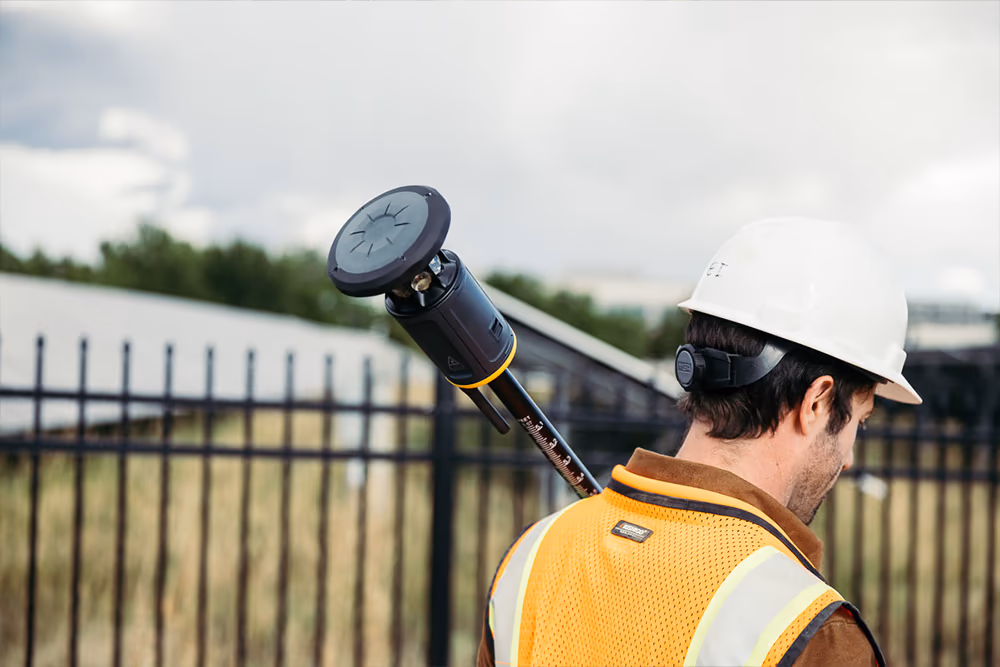

A 360° prism you can trust

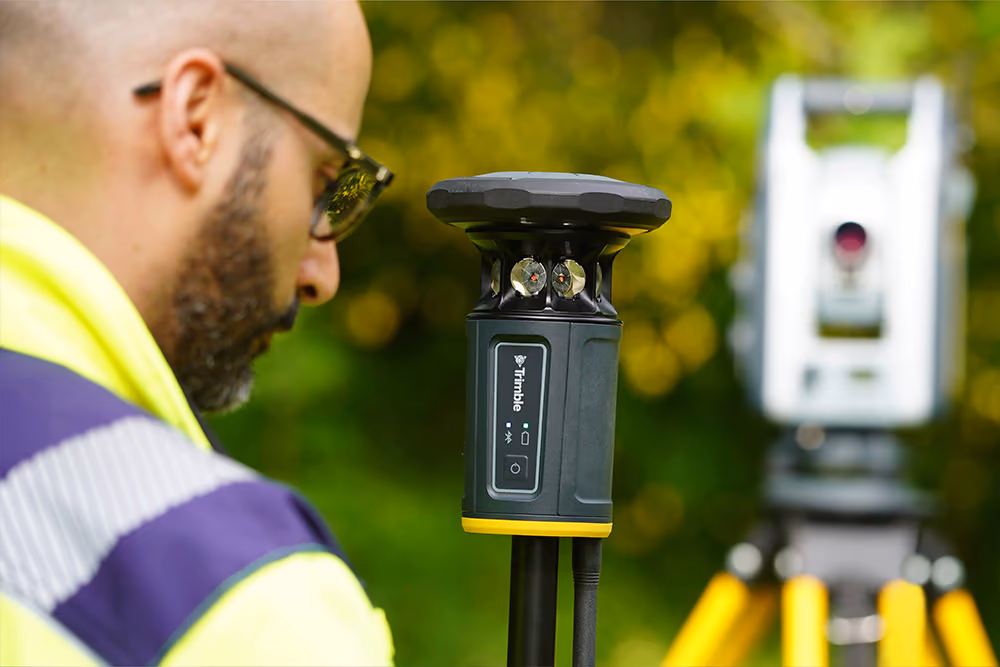

Featuring a rugged exterior and patented protected active tracking LEDs, the 360° prism delivers accurate, dependable performance in all environments.
